Ultrasonic Tube
Filling & Sealing
Machine
Fully automatic tube filling and sealing for pharmaceutical, cosmetics, personal care, food and chemical industries.
Request a Quote
Clean Sealing.

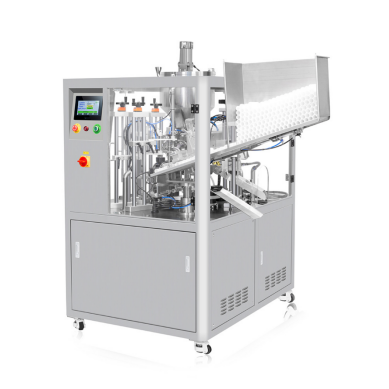

The Ultrasonic Tube Filling & Sealing Machine delivers fully automatic tube loading, filling and ultrasonic sealing — eliminating manual intervention and ensuring consistent, high-quality output every cycle.
Engineered for demanding production environments, the machine handles plastic and aluminum-plastic laminate tubes from Ø13 to 50 mm, making it ideal for cream, ointment, gel, paste and liquid products across multiple industries.
With ultrasonic sealing technology featuring automatic power compensation, seal quality remains constant over time — no degradation, no rework.
Key Specifications
Automatic tube loading eliminates manual labor, reduces human error and keeps your production line running continuously.
Seal quality stays consistent over the entire production run — no power drop, no quality degradation, crystal-clear finish every time.
Smart detection stops filling and sealing when no tube is present, protecting your tooling and eliminating material waste.
Precision anti-drip filling nozzle combined with 304 stainless steel construction ensures a clean, hygienic and corrosion-resistant operation.
Intelligent PLC system with real-time fault display enables instant diagnosis and fast troubleshooting — minimizing downtime on the production floor.
Handles both plastic and aluminum-plastic laminate tubes from Ø13 to 50 mm, covering a broad range of product types and packaging formats.
| Parameter | Specification |
|---|---|
| Applicable Tube Materials | Plastic (PE/PP) & Aluminum-Plastic Laminate |
| Tube Diameter Range | Ø13–50 mm (custom sizes available) |
| Tube Length Range | 50–250 mm |
| Sealing Method | Ultrasonic with automatic power compensation |
| Air Supply Pressure | 0.6–0.8 MPa |
| Air Consumption | 0.38 m³/min |
| Machine Weight | 450 kg |
| Machine Footprint | 1,630 × 1,380 mm |
| Control System | PLC with HMI touchscreen & fault display |
| Contact Parts Material | 304 Stainless Steel (316L optional) |
